What's Wrong With This Overhead Crane Application?

Thanks Tim Milsap for providing the correct answer to our last post. This is arch beam or castellated beam which has been around for almost 50 years. It should either be replaced or watched and inspected regularily. Here is some more information that we have provided on our website concerning these types of beams

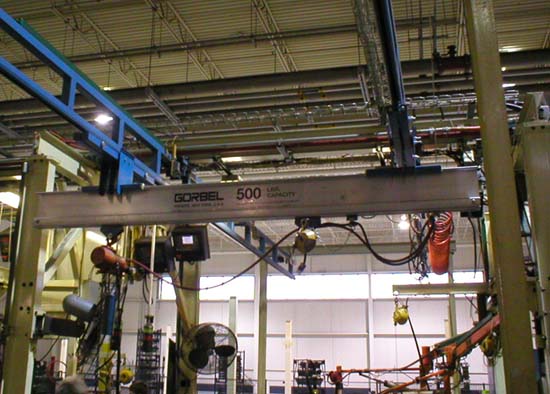

This next picture comes from our internal dealer training slides. Can you tell me what is wrong with the crane application in this picture?

Share It
  • Facebook
  • Twitter
  • LinkedIn
  • DZone It!
  • Digg It!
  • StumbleUpon
  • Technorati
  • Del.icio.us
  • NewsVine
  • Reddit
  • Blinklist
  • Add diigo bookmark
Like It

Comments  4

  • Luis Albanes 25 Oct

    Uh... I can´t see it?
  • Luis Albanes 25 Oct

    mmm the connection on the right to the column ?
  • Francisco Mayoral 26 Oct

    That the hoist extends beyond the span of the upper supports holding the beam
  • Jim 28 Oct

    Looks like there are 2 trolleys on the bridge and there are no carriers for the festooning
