Capacity

Up to 2,000 lbs

Span

Circular to 16'

Height

N/A

Coverage Area
Type

Circular

Coverage Area

360°

Motorization

No

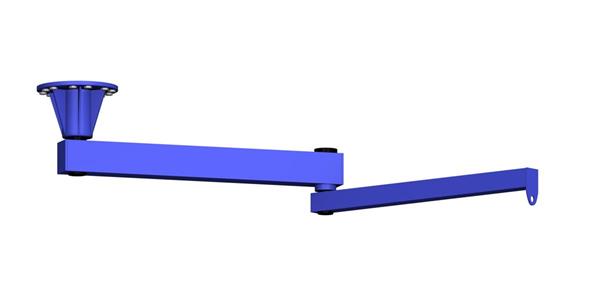

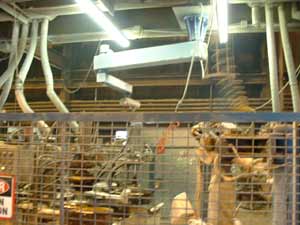

Ceiling Mounted Articulating Jib Crane

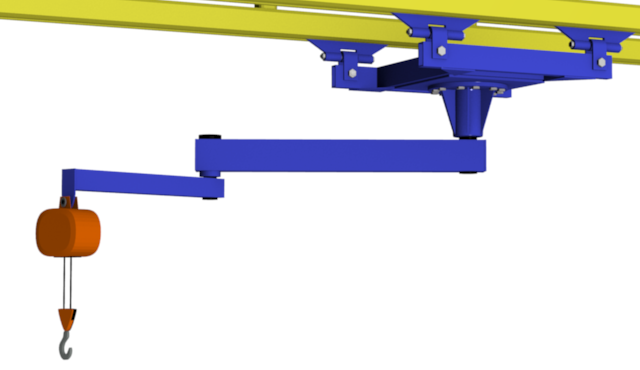

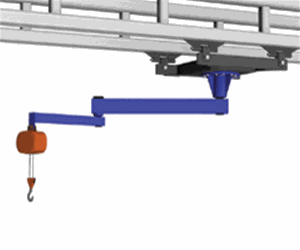

    The Ceiling Mounted Articulating Jib Crane can be stationary mounted or platform supported from a Gorbel® Work Station Dual Girder Bridge Crane, which enables usage outside the normal coverage of a bridge crane or the jib to swing under obstructions. With the jib mounted to a platform, multiple work cells can be covered with just one crane and lifting device. Here are some key features of our Ceiling Mounted Articulating Jib Crane:

  • Capacities up to 2,000 lbs.
  • Circular coverage: standard spans to 16'
  • 360˚ rotation at each pivot point
  • Can be used with hook mounted lifting devices (electric, air, or vacuum)
  • Note: when mounting to an Offset Load Platform, spans may be limited based on your crane capacity
  • Can be mounted to a platform supported from a bridge crane to swing outside the normal coverage of a bridge crane - Contact Customer Service, limited to certain capacities and spans
  • Mounted overhead, no disruption to work flow in work cell
  • Compact design requires minimal overhead clearance for installation

Options:

  • Electric lifting devices
  • Air lifting devices
  • Vacuum lifting devices

Accessories (Add-Ons):

  • Air swivel for boom and / or arm
  • Collectors for boom and / or arm
  • Rotation stops for boom and / or arm
  • Circular coverage area
  • Moving loads around corners or through doorways
  • Reaching loads into machines
  • Swinging loads under obstructions
