Gantry Cranes

Gantry Cranes provide an economical way to lift materials anywhere in a facility. This is a more cost-effective lifting solution for areas of infrequent lifts than a more expensive permanent structure. Gantry cranes have what it takes to maximize efficiency while saving your time.

The Gantry Cranes’ heavy duty end frame design with square tubing uprights, knee braces and channel base on the adjustable height gantry cranes and square tubing uprights and bases on the fixed gantry cranes provides stable lifting and smooth movement in and out of your lifting environment.


1,000 lbs to 5 tons


Up to 30 ft


Up to 20 ft

Coverage Area Type


Coverage Area





What are Gantry Cranes?

Gantry Cranes provide you with a mobile lifting solution. They can be used for infrequent lifts, lifts in areas where a permanent structure can’t be used, or used in conjunction with an overhead crane. Gorbel®’s line of Gantry Cranes come in steel fixed height, steel adjustable height, and a collapsible aluminum option.

Why Gorbel's Gantry Cranes?

Gantry Cranes can be used to load and unload items in both indoor and outdoor settings and then stored out of the way until needed. Our aluminum gantry cranes are lightweight and collapsible for even easier storage. The non-marking durable phenolic casters on our Gantry Cranes provide low rolling resistance for easy movement. The casters enable you to move the gantry around your work area. They also roll smoothly, even over rough floor surfaces, and can withstand water, oil and most other chemicals. The bolted beam to upright connection ensures the beam does not dislodge.


Types of Gantry Cranes

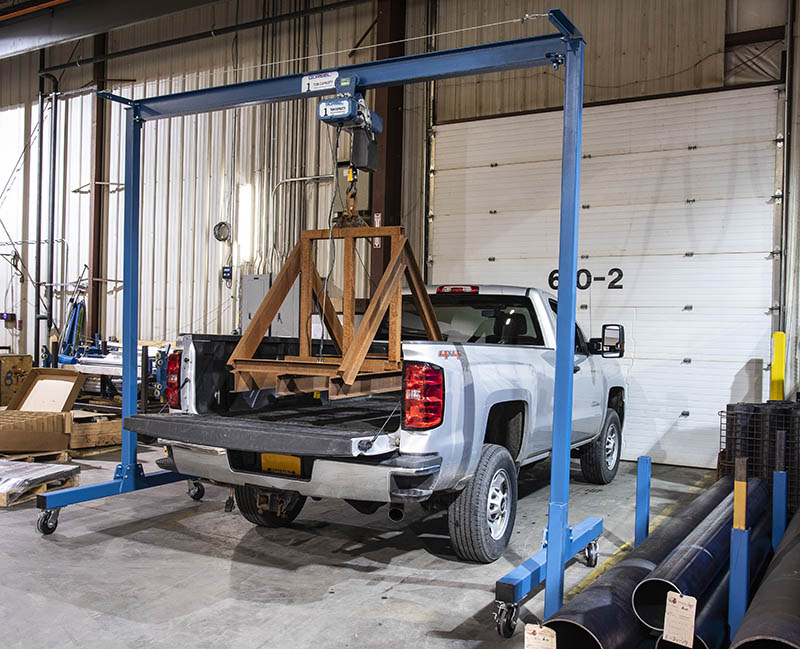

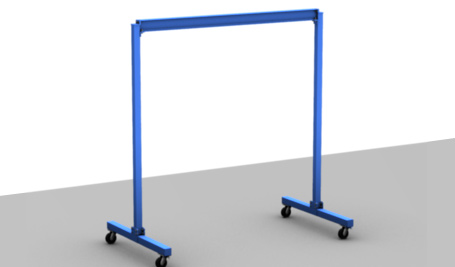

Fixed Height Gantry Crane

Gorbel®’s Fixed Height Gantry Cranes feature a new design that allows them to be moved safety with a suspended load. Available in spans up to 30' and capacities up to 5 ton.

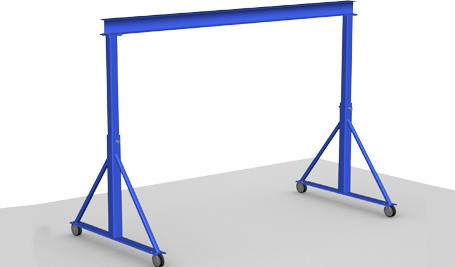

Adjustable Height Gantry Crane

The Adjustable Height Gantry Crane provides the most flexible lifting solution of any style gantry crane. It can be easily moved and easily adjusted to provide different lifting heights. Available in spans up to 30’ and capacities to 5 ton.

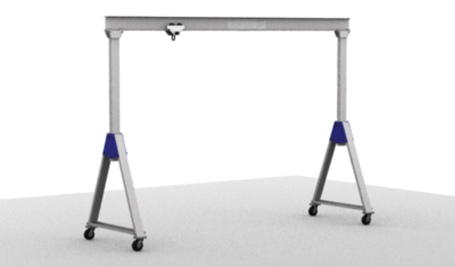

Aluminum Gantry Crane

The Aluminum Gantry Crane is made from lightweight extruded aluminum track. They have an adjustable span and height and are collapsible for easy storage when not in use. Available in spans up to 20’ and capacities to 2 ton.
