Capacity

Up to 10,000 lbs

Span

Circular to 20'

Height

N/A

Coverage Area
Type

Circular

Coverage Area

200°

Motorization

Yes

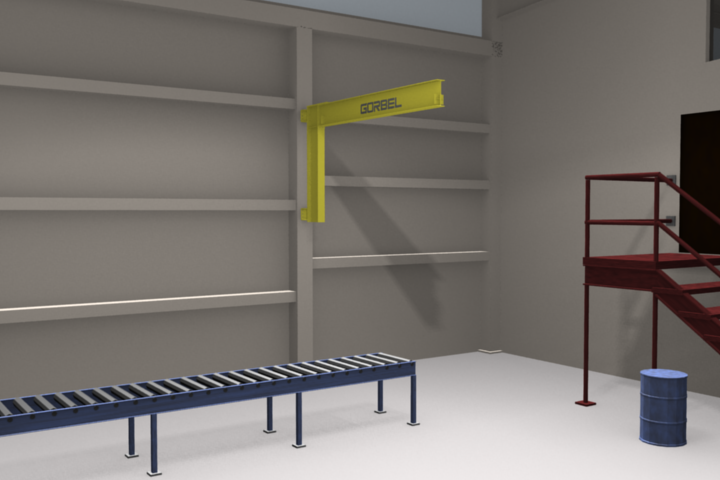

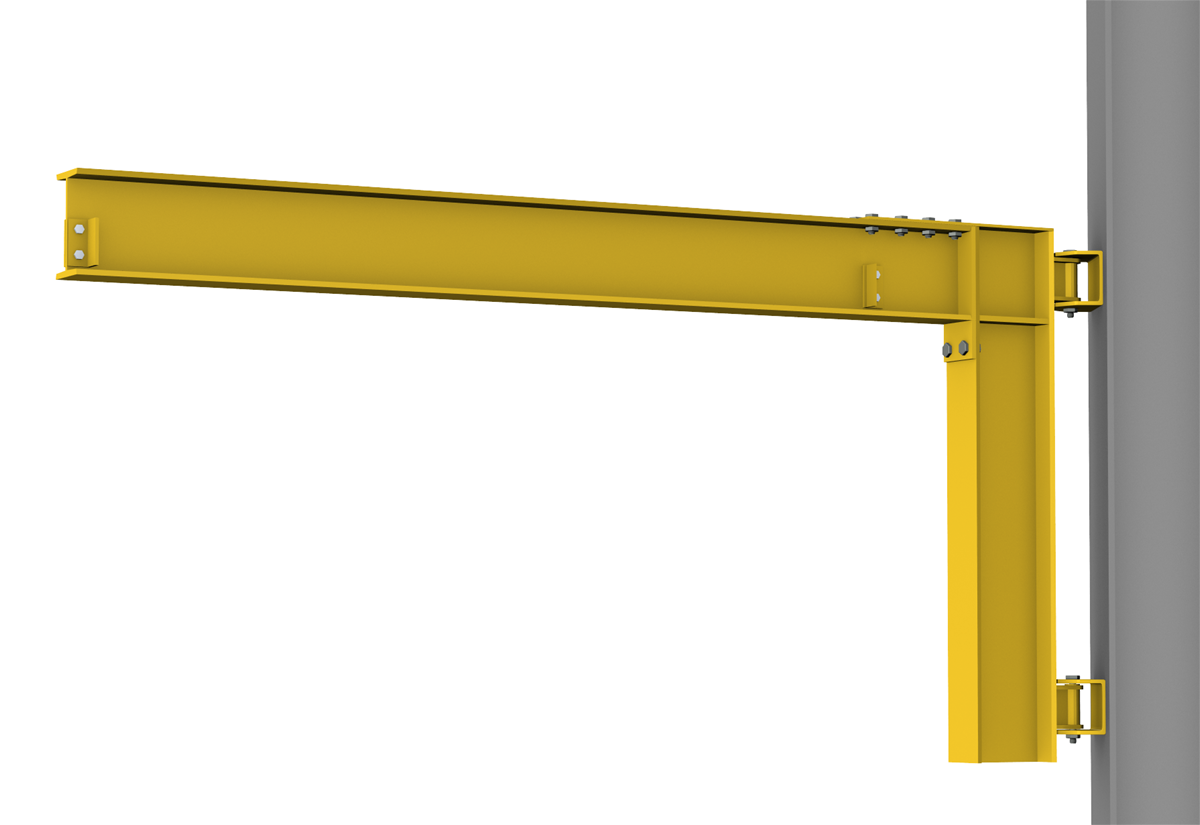

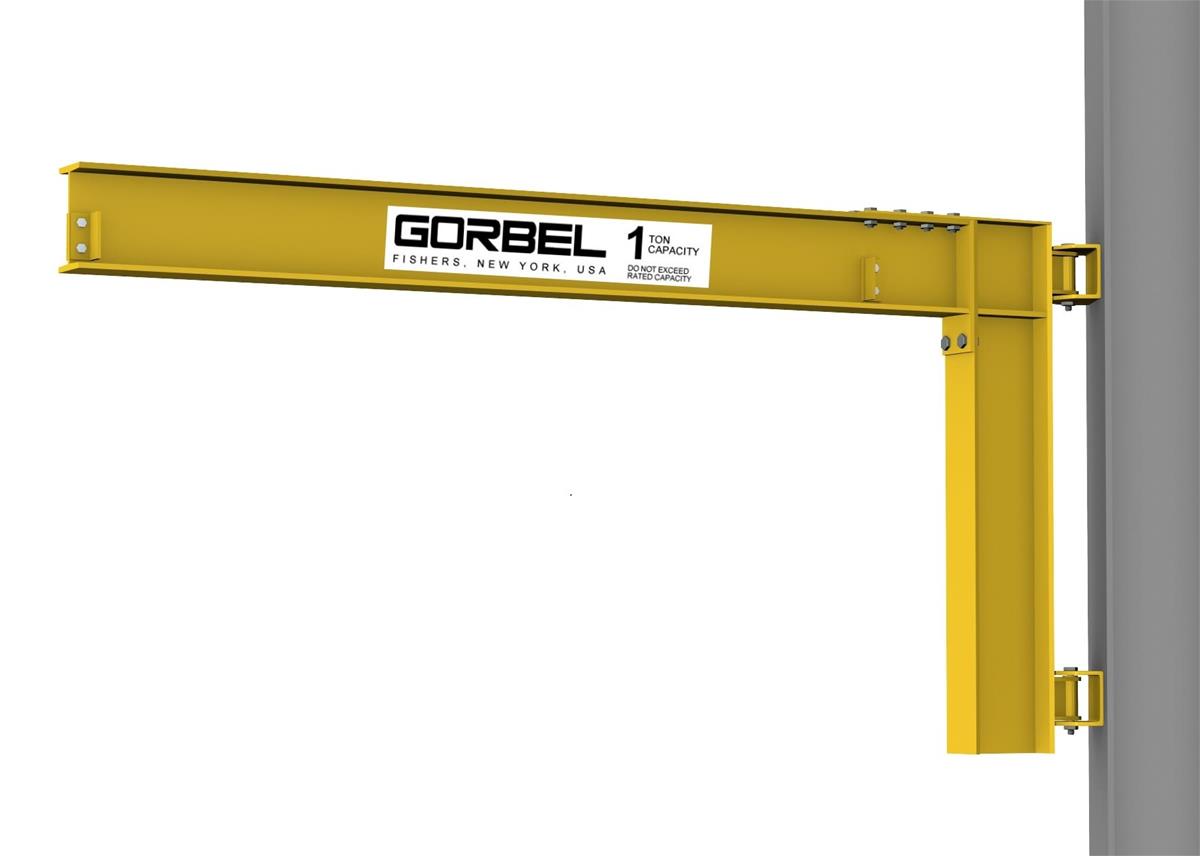

Wall Cantilever Jib Crane

    The Wall Cantilever Jib Crane provide hoist coverage and 200° rotation for individual use in bays, along walls or columns of plants, or as a supplement to an overhead crane or monorail system. This jib has the advantage of providing maximum lift for the hoist, since it can be installed very close to the underside of the lowest ceiling obstruction. Here are some key features of our Wall Cantilever Jib Crane:

  • The fittings contain bronze bushings and oil-impregnated bronze thrust washers which provide for easy rotation and superior load positioning
  • Fabricated steel fittings provide excellent torsional rigidity
  • When the bracket center dimension is 6’ 0” or less, the mast/boom connection is welded. This provides the most economical means of installation
  • When the bracket center is greater than 6’ 0”, a bolted mast/boom connection is used, which enables the larger cranes to be shipped disassembled for ease of handling during shipping and installation
  • Grease fittings are provided for easy field lubrication

  • Prior to selecting a Wall Cantilever Jib Crane for your application, two key requirements must be met. The jib crane needs a structurally adequate wall or column to support it. There must be sufficient clearance above the boom throughout its arc.

"When it came down to ease of use, it was by far Gorbel®, there was no one that was even close to having a system that worked as well or easy as the Gorbel® system."
  • Requires very little headroom, so it can be installed very close to the underside of ceilings to provide maximum lift for your hoist

Options:

  • Custom Paint

Accessories (Add-Ons):

  • Tagline assemblies
  • Manual rotation stops
  • Motorized kits
  • Fusible disconnect switches
  • End stop kits
  • Download full list of Jib Crane Accessories

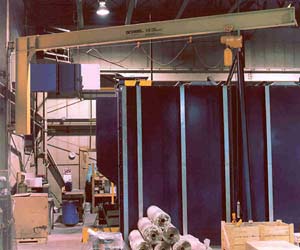

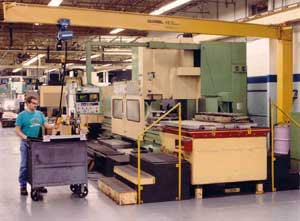

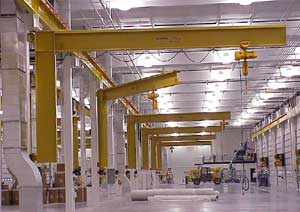

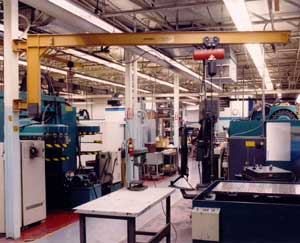

  • Hoist coverage along walls or columns
  • Individual use in bays
  • Supplement to an overhead crane or monorail
