Capacity

2 to 40 tons

Span

Up to 60'

Height

N/A

Coverage Area
Type

Square or Rectangular

Coverage Area

60' W x Unlimited Length

Motorization

Yes

Cleveland Tramrail Underhung System

    Our patented track underhung crane systems have an impressive track record of reliable, long-lasting service in high-duty-cycle applications, loading docks, parts assembly, equipment maintenance and truck service centers. Cleveland Tramrail®’s underhung crane systems can be used to efficiently move material through an entire production facility.

    With capacities from 5 to 40 ton, our underhung systems are superior to I-Beams in strength, durability, and consistency while also offering extended track life. Our Cleveland Tramrail® Underhung Systems are easily changeable and expandable, making them cost effective for your facility. Here are some key features of our Cleveland Tramrail Underhung Systems:

  • Straight rails result in easy, predictable, cost effective installations
  • Efficient spanning capabilities eliminates costly additional supporting structures
  • Raised tread tarca track provides durability and superior safety
  • Flexible suspensions provide for longer life and less maintenance
VIDEOS
PHOTOS
– / 9

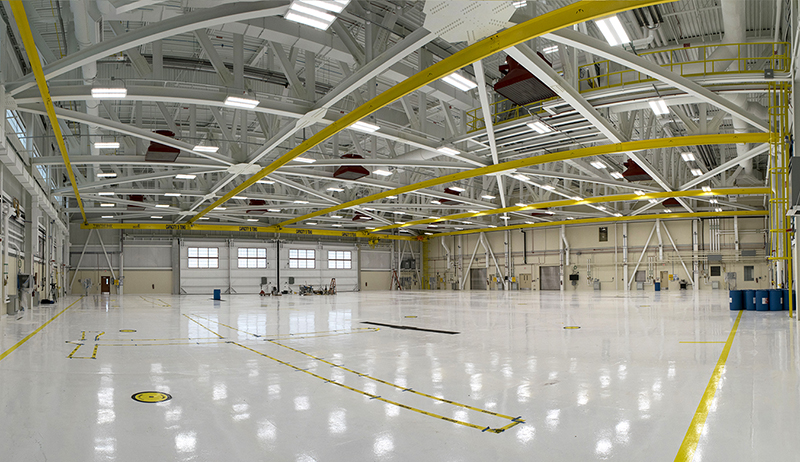

Image not found: /images/default-source/cleveland-tramrail-underhung-systems/ct_5ton.tmb-small.jpg?Culture=en&sfvrsn=9a731919_2

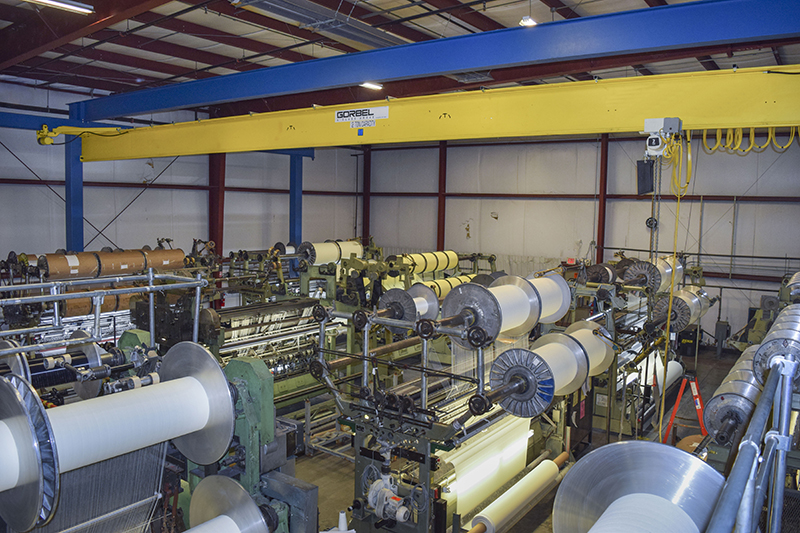

Image not found: /images/default-source/cleveland-tramrail-underhung-systems/ct_2ton.tmb-small.jpg?Culture=en&sfvrsn=9e731919_2

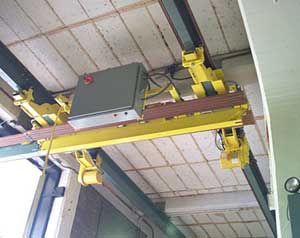

Image not found: /images/default-source/cleveland-tramrail-underhung-systems/water_new.tmb-small.jpg?Culture=en&sfvrsn=879d0b19_2

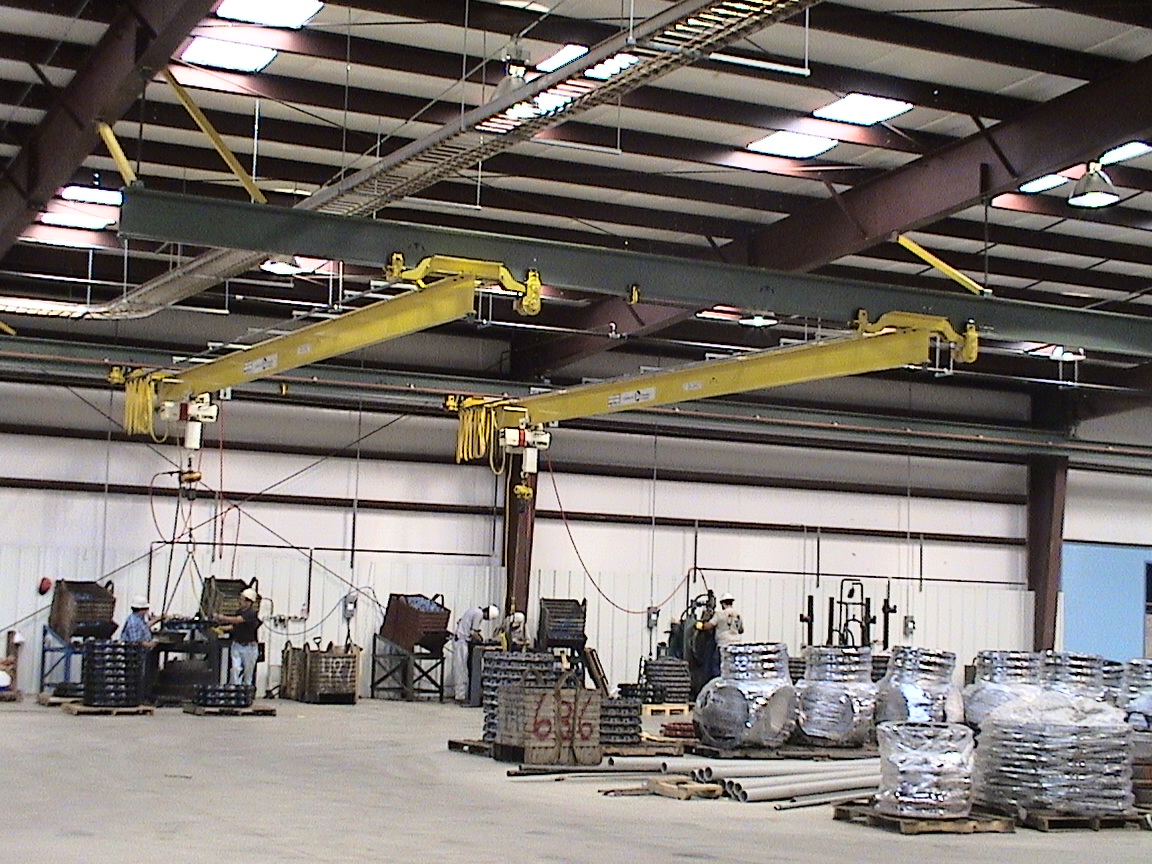

Image not found: /images/default-source/cleveland-tramrail-underhung-systems/interlocks11.tmb-small.jpg?Culture=en&sfvrsn=869d0b19_2

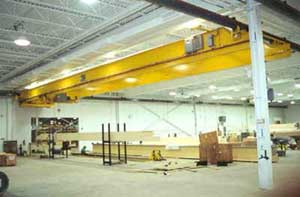

Image not found: /images/default-source/cleveland-tramrail-underhung-systems/pds2.tmb-small.jpg?Culture=en&sfvrsn=989d0b19_2

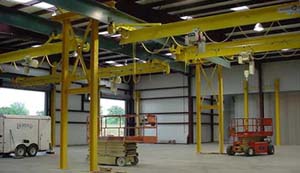

Image not found: /images/default-source/cleveland-tramrail-underhung-systems/interlocks5_case.tmb-small.jpg?Culture=en&sfvrsn=9c9d0b19_2
Image not found: /images/default-source/cleveland-tramrail-underhung-systems/glass2_news.tmb-small.jpg?Culture=en&sfvrsn=929d0b19_2

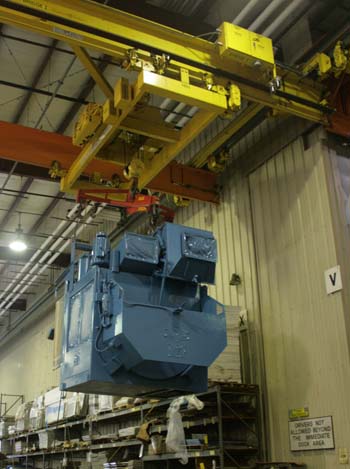

Image not found: /images/default-source/cleveland-tramrail-underhung-systems/ctlaundry.tmb-small.jpg?Culture=en&sfvrsn=68c0b19_2

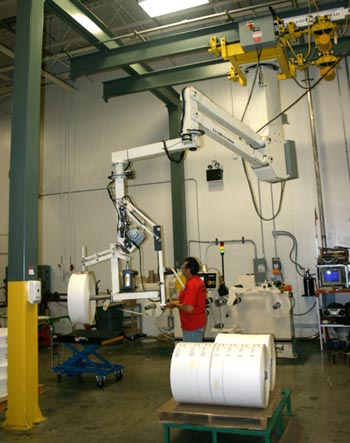

Image not found: /images/default-source/cleveland-tramrail-underhung-systems/tarca_gb.tmb-small.jpg?Culture=en&sfvrsn=1a8c0b19_2
"The Cleveland Tramrail patented track system gives us so many more opportunities to change our manufacturing process, to give us opportunity to change ourselves so that we’re not married into one design,” said Schafer. “As our machines evolve, and our build processes change, we’re able to address those.”
View this story

Features & Benefits

  • Superior to I-Beams in strength, durability, and consistency
  • Extended track life compared to I-Beam Systems
  • System expansions are easy and cost effective
  • Straight rails result in easy, predictable, cost effective installations
  • Efficient spanning capabilities eliminates costly additional supporting structures
  • Raised tread tarca track provides durabillity and superior safety
  • Flexible suspensions provides for longer life and less maintenance
Panel Footer

Options & Accessories

Options:

  • Aluminum enclosed track bridges
  • Double girder
  • Multiple runways
  • Low headroom options

Accessories (Add-Ons):

  • Interlocks/Transfers
  • Drives
  • Curves
  • Switches
  • Safepowrbar electrification
Panel Footer

Applications

  • Hot metal
  • Necropsy Lab
  • High duty cycle applications
  • Parts Assembly
  • Warehouse loading docks
  • Process Equipment Maintenance
  • Truck Service Centers
Panel Footer
FileDownload
Cleveland Tramrail® gives lift to sub assembly and final assembly area for crop sprayers Download
Work Station Crane helps double productivity in sheet metal application. Download
Cleveland Tramrail® patented track system helps lift customized material handling products for manufacturer Download
Work Station Crane with custom header/column connections helps in CNC lathe and milling of large parts. Download
Dual Monorail Cleveland Tramrail System helps load large paper rolls onto skids Download
Cleveland Tramrail® keeps industrial laundry manufacturer churning Download
