Capacity

Up to 10,000 lbs

Span

Circular to 20'

Height

Up to 20'

Coverage Area
Type

Circular

Coverage Area

360°

Motorization

Yes

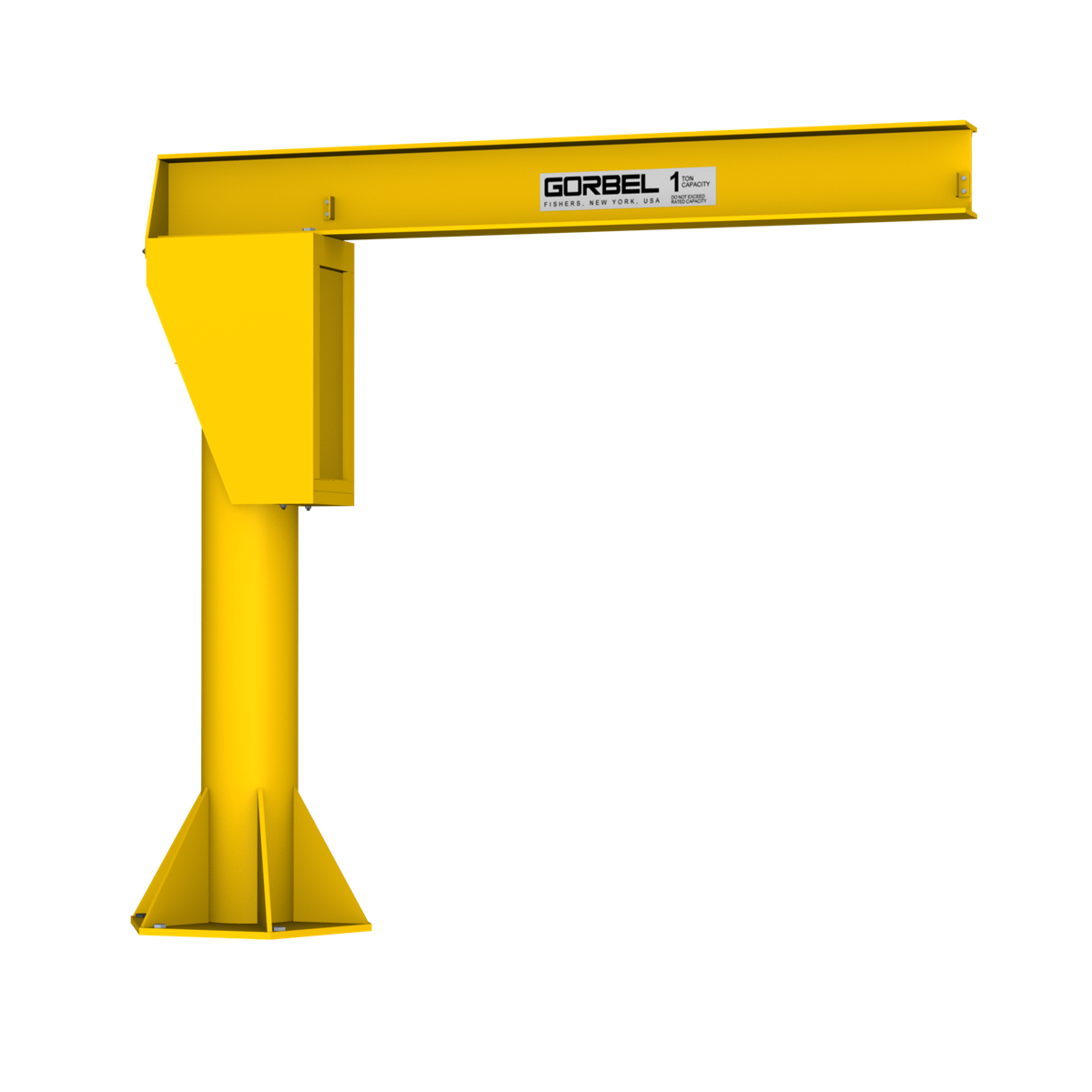

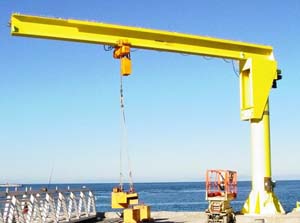

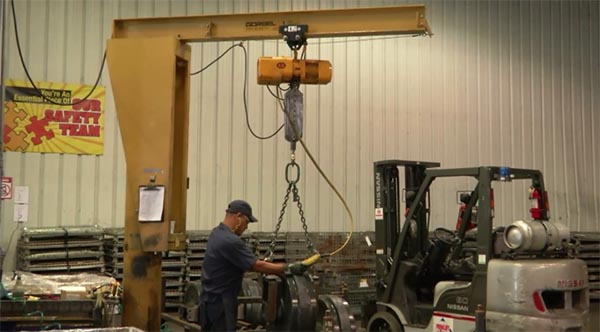

Free Standing Jib Crane

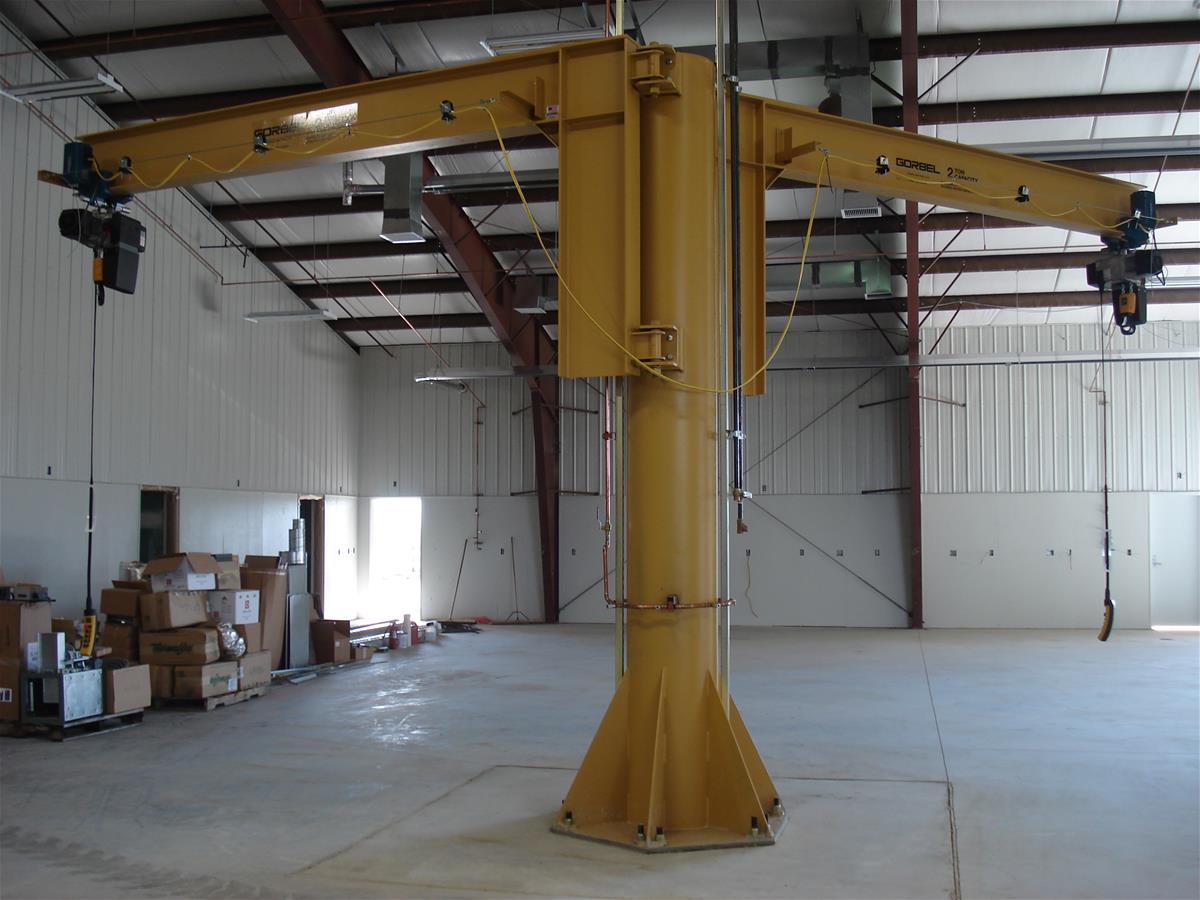

    Free Standing Jib Cranes are Gorbel’s most versatile crane and are best for heavy duty, high productivity applications. They are the perfect jib crane to place underneath large bridge cranes, in open areas where they can serve several work stations, in outdoor applications such as loading docks, or in machining and assembly operations where they can be overlapped with other jib cranes to provide staged operation. Here are some key features of our Free Standing Jib Crane:

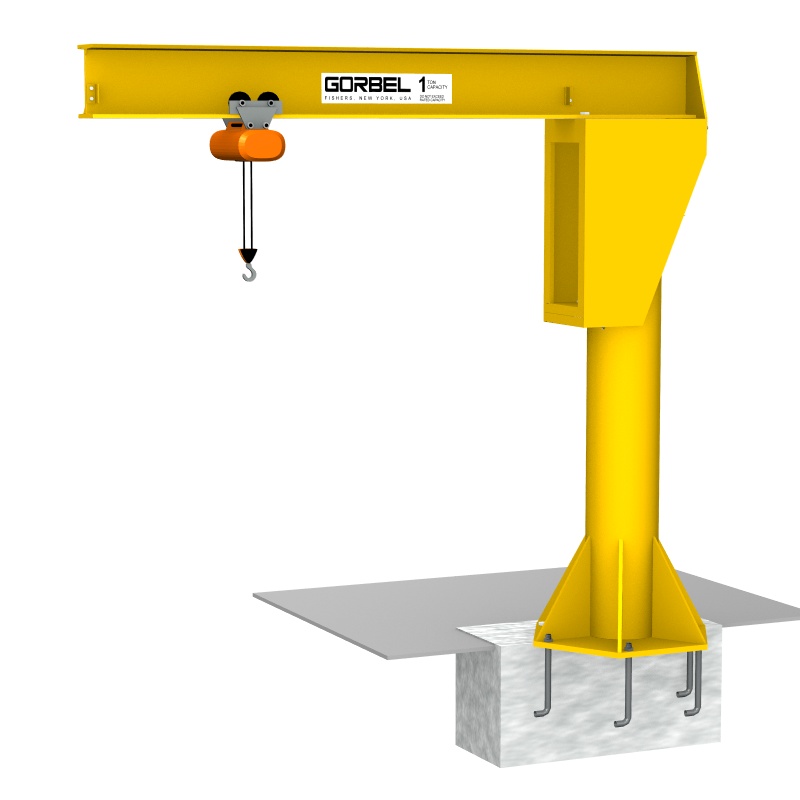

  • 3 available mounting styles – base plate mounted, Insert mounted (permanent), sleeve mounted (removable)
  • Boxed style head provides benefits from install to operation of the jib crane
  • Full supporting triangular gussets that minimize crane deflection, making it easier to accurately position loads
  • In-head, enclosed bottom entry collector assembly allows the option to add power to the hoist for 360 degree rotation at the time of or after purchase
  • Head retaining pin provides resistance to accidental upward dislodgement of the head

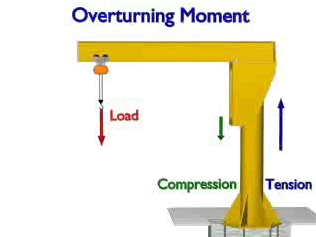

  • Prior to selecting a Free Standing Jib Crane for your application, two key requirements must be met. The jib crane needs to be supported by a structurally adequate foundation unless you choose a foundationless design. There must be sufficient clearance above the boom (nominally 3 inches) throughout its arc.

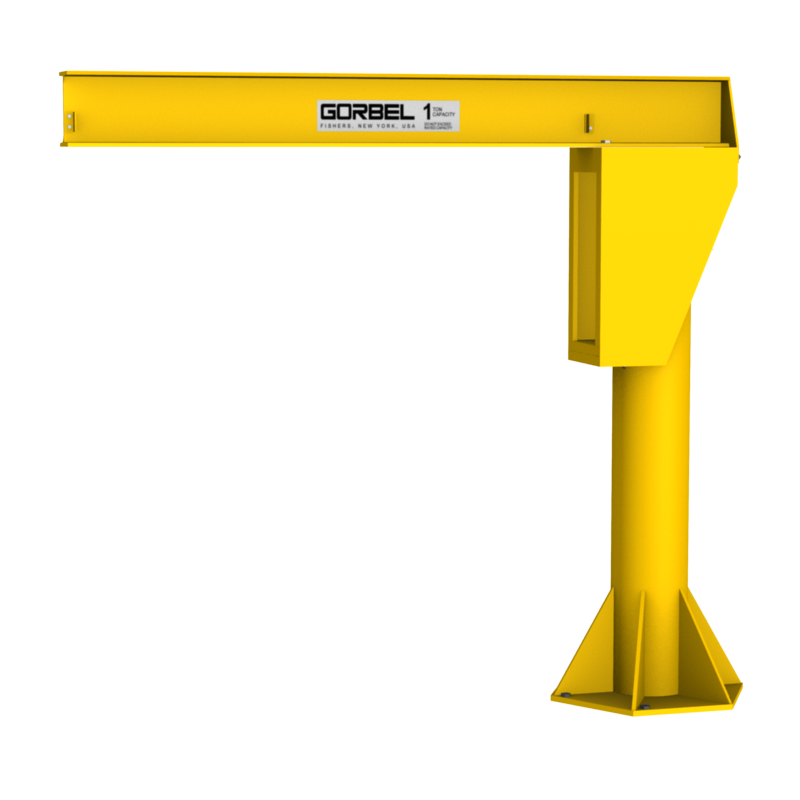

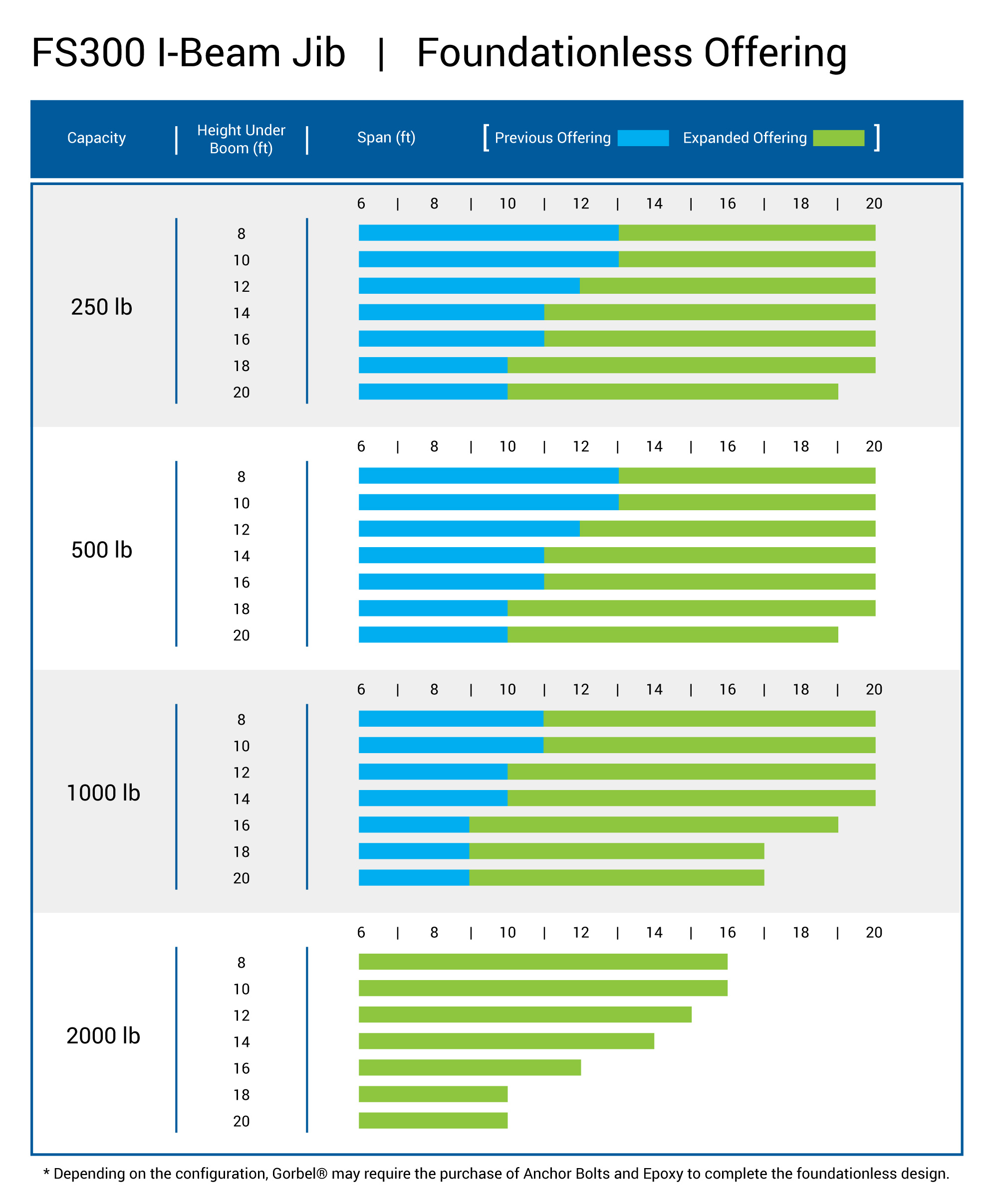

FS300 Foundationless Offering

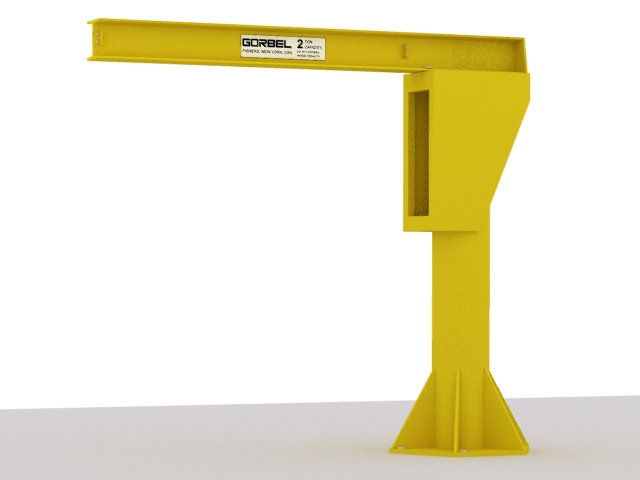

Free Standing I-Beam Jib Foundationless Offering
To learn more about the benefits of Foundationless Jib Cranes and see our complete foundationless offering, click HERE!
"When it came down to ease of use, it was by far Gorbel®, there was no one that was even close to having a system that worked as well or easy as the Gorbel® system."
  • Independent head assembly installs separately for ease of installation
  • Full supporting triangular base plate gussets are used instead of struts to minimize crane deflection and make positioning loads easier

Options:

  • Base plate mounted
  • Foundationless
  • Sleeve mounted
  • Insert sleeve mounted

Accessories (Add-Ons):

  • Top and bottom entry air swivel
  • Manual rotation stops

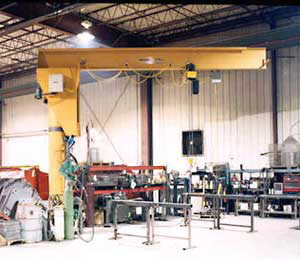

  • Motorized kits
  • End stop kits
  • Fusible Disconnect switches
  • Single or multi-position lock devices
  • Special finishes available based on application requirements
  • Download full list of Jib Crane Accessories
  • Circular coverage areas

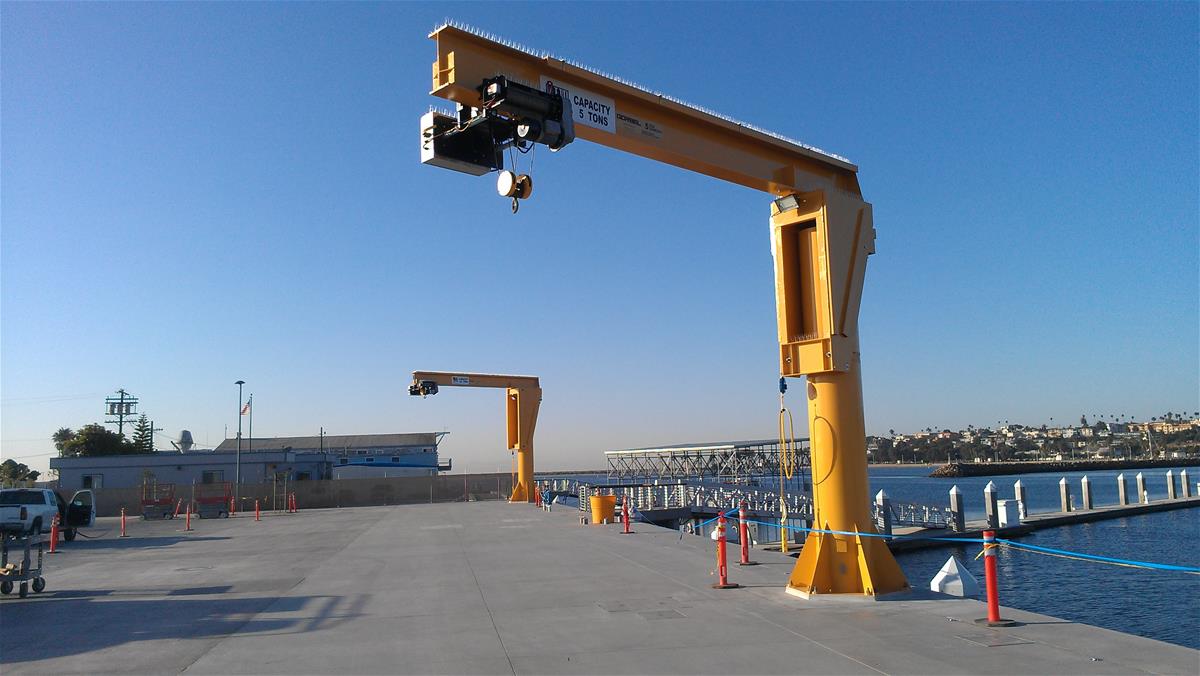

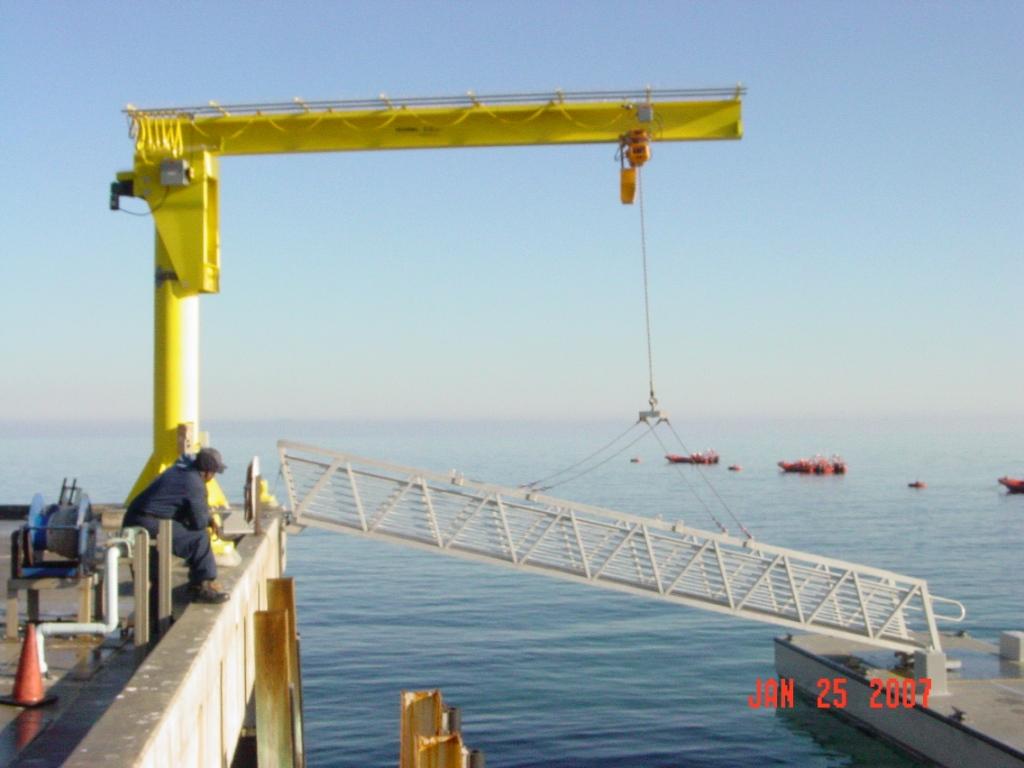

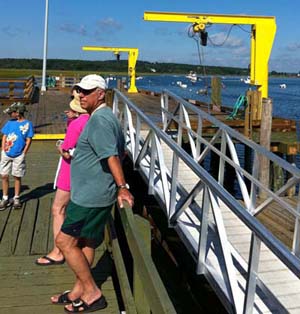

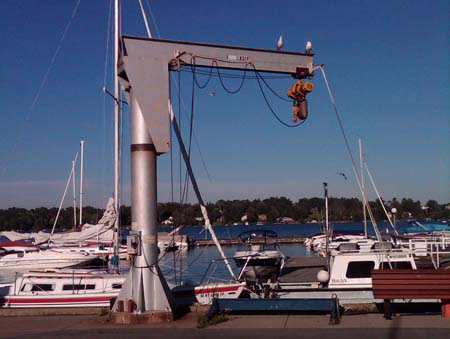

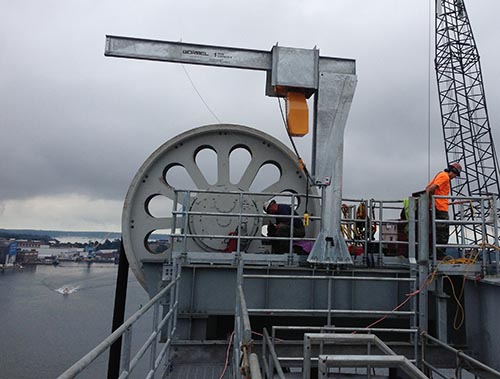

  • Outdoor applications such as loading docks

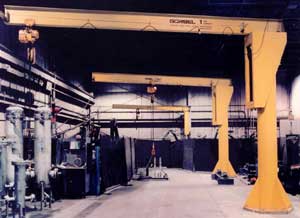

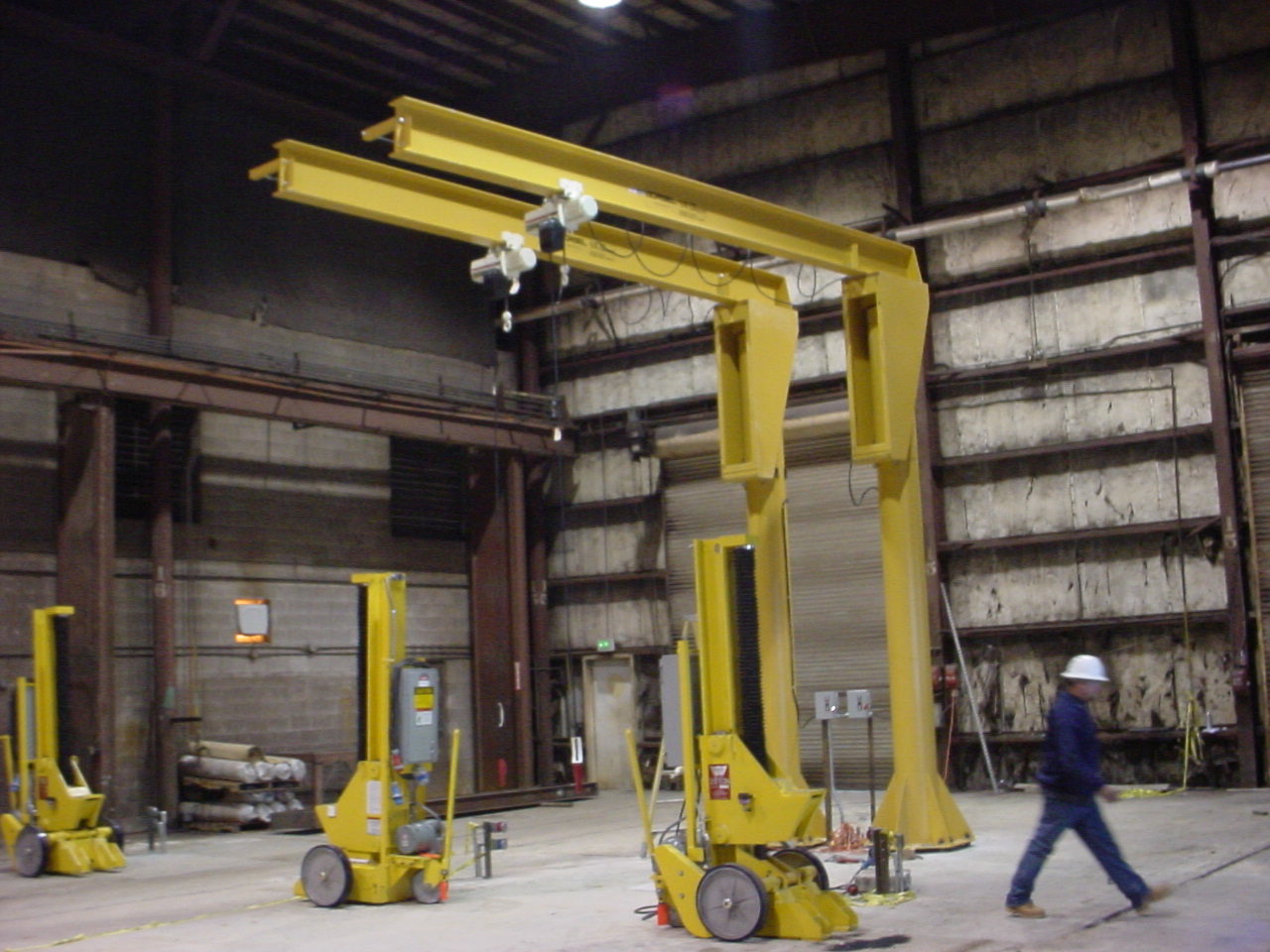

  • Applications underneath large bridge cranes

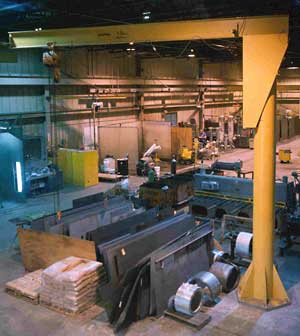

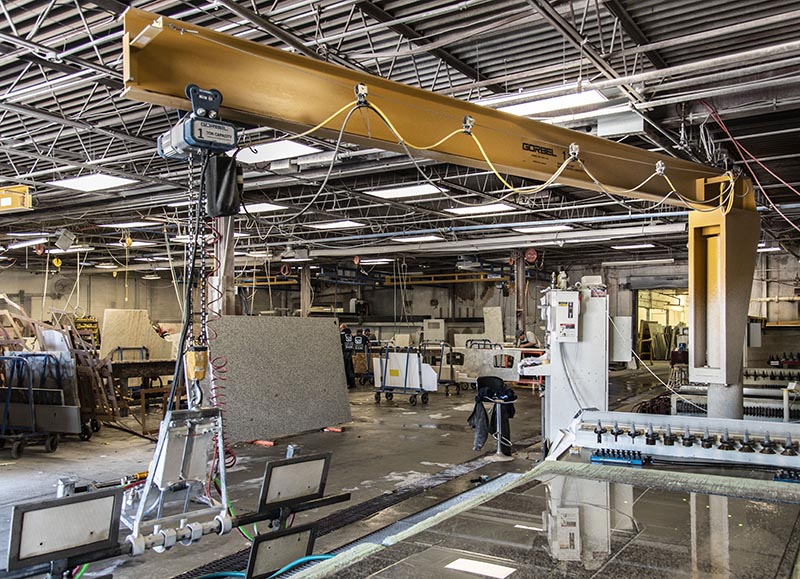

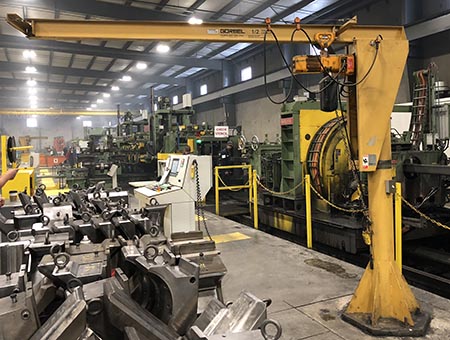

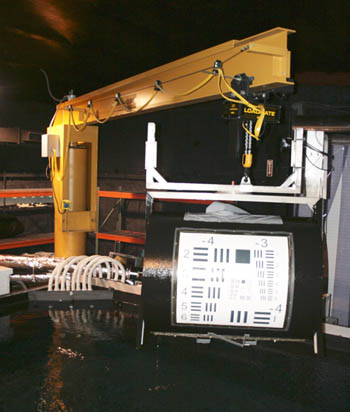

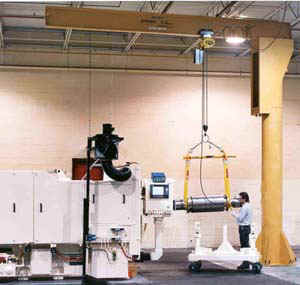

  • Machining or assembly applications
