Heavy-Duty Industrial I-Beam Jib Crane Systems

Gorbel heavy-duty jib crane solutions are built for maximum safety and performance in demanding industrial environments. Designed to lift and move materials in semicircles or complete circles, an I-beam jib crane is a cost-effective way to boost productivity in tight spaces. As a premier heavy-duty jib crane manufacturer, we provide versatile styles—including free-standing jib cranes, wall-mounted jib cranes, and mast-type jib cranes —with lifting capacities up to 5 tons.

Safe, efficient material handling requires the right equipment. Using an incorrect overhead jib crane can stall your production line and put your team at risk for workplace accidents. Installing a rugged industrial jib crane or a tailored jib crane system helps you avoid these pitfalls, minimizes crane deflection during heavy lifts, and optimizes your daily output.

Capacity

Up to 10,000 lbs

Span

Circular up to 30 ft

Height

Up to 20 ft

Coverage Area Type

Circular

Coverage Area

Up to 360°

Motorization

Yes

View Our Product Comparison Chart

Choosing the Right I-Beam Jib Crane Configuration for Your Workspace

Free-Standing Jib Cranes: Best for high-productivity, heavy-duty applications requiring true 360-degree rotation and versatile placement.

Wall Bracket Jib Cranes: The most economical way to supplement a main overhead crane, providing 200-degree rotation along factory walls.

Wall Cantilever Jib Cranes: Engineered specifically for tight workspaces to maximize hoist lift and clear low overhead ceiling obstructions.

Mast Type Jib Cranes: Floor-supported and top-stabilized, providing 360-degree coverage without requiring a massive, expensive concrete foundation layout.

What are I-Beam Jib Cranes?

I-Beam Jib cranes exist in multiple configurations to support a variety of applications. Examples of workplaces that use jib cranes include warehouses, military facilities, equipment manufacturers, and order fulfillment providers. In general, jib cranes are categorized according to their mounting configurations: Free Standing, Floor Supported, and Wall Mounted.

Why Gorbel's I-Beam Jibs?

As a safety manager or plant operator, you would likely agree that two of your top goals are to maximize productivity and promote workplace safety. One of the best ways to achieve these goals is to install one or more jib cranes at your facility. In addition to helping your team increase their product loading and unloading efficiency, jib cranes can be used in many different types of applications. Most importantly, they can help you reduce lifting injuries and minimize downtime.

Types of I-Beam Jib Cranes

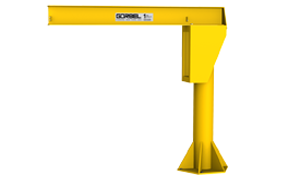

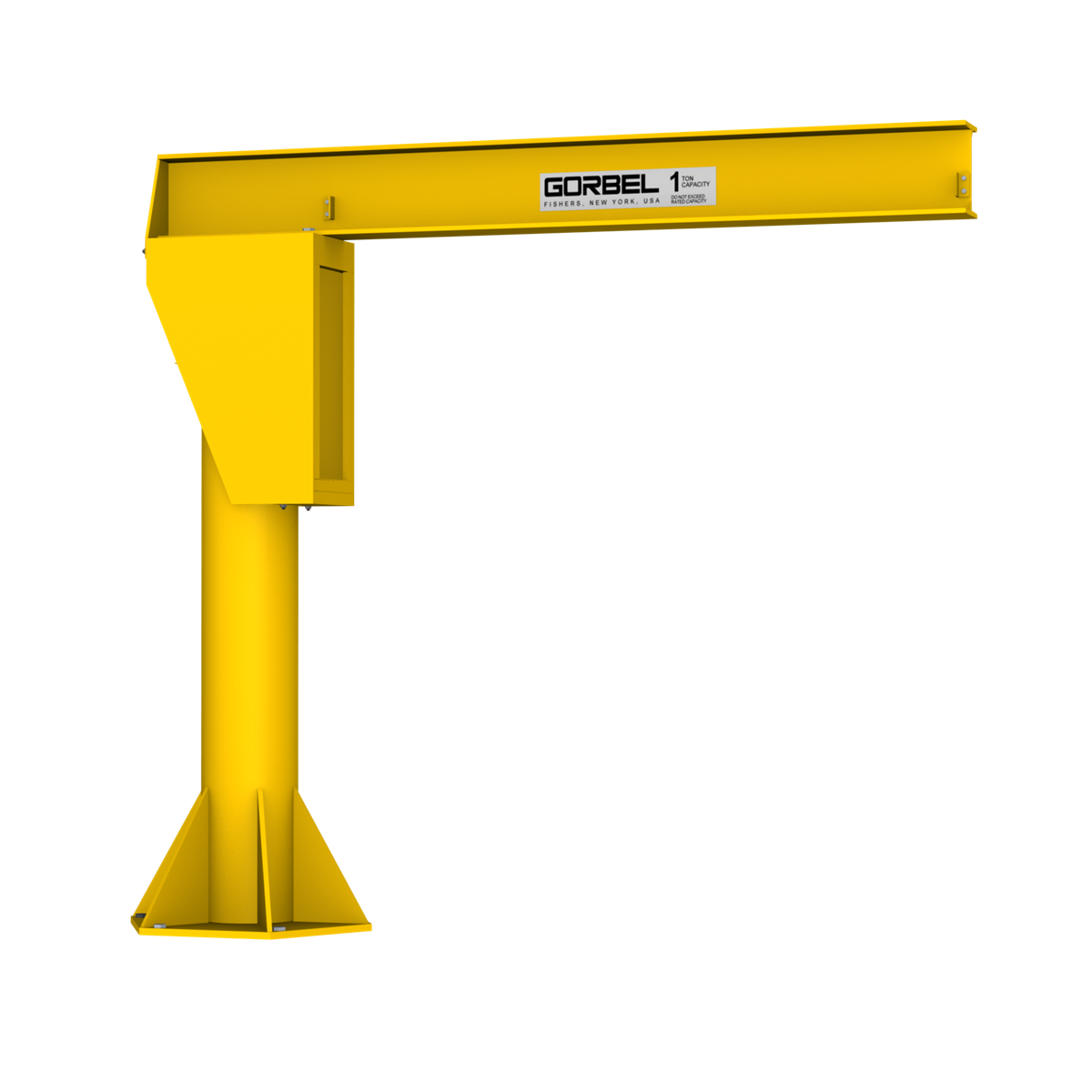

Free Standing Jib Crane

As the most widely used type of jib crane, a free Standing jib crane is manually operated and is able to rotate 360°. They are manufactured in a wide array of heights and spans and require a 6” reinforced concrete foundation for secure mounting.

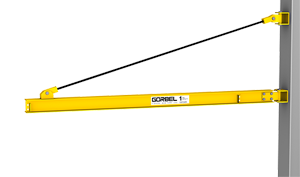

Wall Bracket Jib Crane

Wall Bracket Jib Cranes are the most economical means of providing hoist coverage for individual use in bays, along walls or columns of plants, or as a supplement to an overhead crane or monorail system. They offer 200° of rotation.

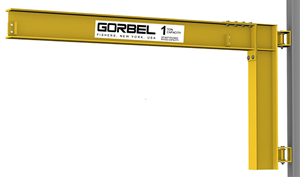

Wall Cantilever Jib Crane

Wall Cantilever Jib Cranes have the advantage of providing maximum lift for the hoist, since it can be installed very close to the underside of the lowest ceiling obstruction. They offer 200° of rotation.

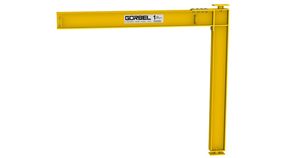

Mast Type Jib Crane

The Mast Type Jib Crane is floor supported, top stabilized, and is capable of 360° of rotation via a top and bottom bearing assembly. It usually requires no special foundation which makes it the most cost effective of the 360° rotation jib styles.

FAQ Section:

Q: What is the maximum capacity and rotation of a Gorbel heavy-duty jib crane?
A: Gorbel I-beam jib crane systems support lifting capacities up to 5 tons (10,000 lbs.) with standard spans up to 30 feet. Our free-standing jib crane and mast-type jib crane designs provide a full 360-degree rotation jib crane work envelope. If you choose a wall-mounted jib crane (available in wall-bracket or wall-cantilever configurations), the system provides 200 degrees of localized rotation.

Q: What is the difference between a Wall Bracket and a Wall Cantilever jib crane?
A: Both are wall-mounted jib crane options offering 200-degree rotation, but they serve different building constraints:
Wall Bracket: The most economical heavy-duty option. It uses a standard I-beam boom supported by a tie-rod bracket that is connected to the wall or a building column.
Wall Cantilever: Designed specifically to maximize headroom. The boom mounts directly to the top of the wall frame, with no overhead support rods, allowing the hoist to sit as close to the ceiling as possible for maximum vertical lift.

Q: Can Gorbel I-beam jib cranes be used in outdoor applications?
A: Yes. Our heavy-duty jib crane system line can be customized for outdoor environments like shipping yards and loading docks. Outdoor configurations include specialized weather-resistant finishes, protective hoist covers, and NEMA-rated electrical enclosures designed to operate safely in outdoor wind speeds up to 15 mph.
