Capacity

2 to 5 tons

Span

Up to 60'

Height

N/A

Coverage Area
Type

Square or Rectangular

Coverage Area

60' W x Unlimited Length

Motorization

Yes

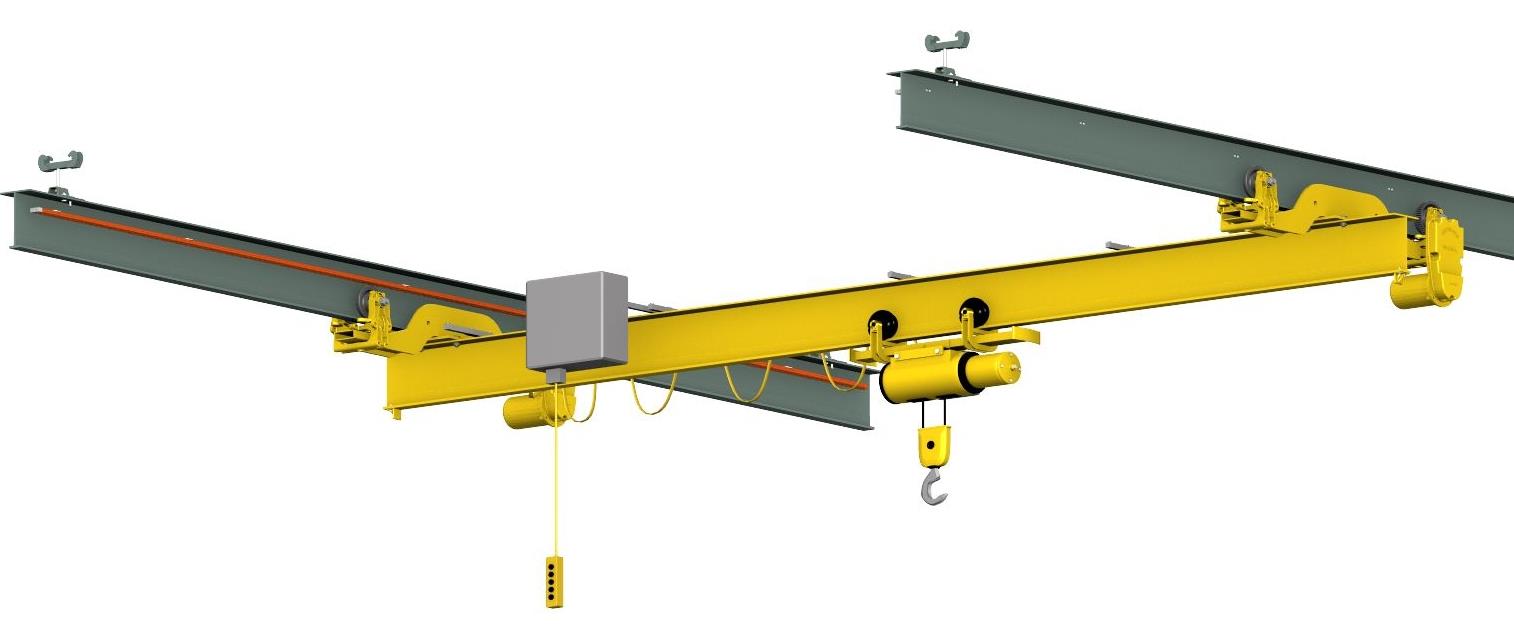

Ceiling Mounted Tarca System

    Cleveland Tramrail Ceiling Mounted Tarca Systems offer a reliable crane solution for your material handling needs. A pre-engineered system available in 2 to 5-ton capacity with stand bridge lengths up to 60’-0” overall (58’-0” span) with runway support centers up to 50’-0”.

    Support methods include direct bolt or flexible hanger rod suspension with minimal superstructure needed. Available options include 2-speed controls for bridge travel, C-Track (and Pendant Track) festoon systems for the bridge, conductor bar for the runways along with plug and play hoist and radio control integration. Here are some key features of our Ceiling Mounted Tarca System:

  • Efficient design for spanning - the thickness and width of Tarca’s web and flange for each size have been carefully engineered to maximize strength and loading capability while minimizing weight
  • Standardized lower flange provides compatibility - Tarca track features the same 3-1/4” wide lower flange regardless of rail height or load carrying capacity
  • Rugged, Long Lasting Components
  • Flexible suspensions provide longer system performance and lower maintenance costs
  • Custom options include dual girder bridges, multiple runway systems for covering wide buildings along with interlocks for transferring loads onto monorail spurs.

  • Superior to I-Beams in strength, durability, and consistency
  • Easily undercut to increase headroom
  • System expansions are easy and cost effective
  • Straight rails result in easy, predictable, cost effective installations
  • Flexible suspensions provides for longer life and less maintenance

Options:

  • Aluminum enclosed track bridges
  • Multiple bridge configurations
  • Custom Paint
  • Plug-n-Play

Accessories (Add-Ons):

  • Interlocks
  • Switches
  • Safpowrbar® electrification
  • Hot metal
  • Necropsy Lab
  • High duty cycle applications
  • Parts Assembly
  • Warehouse loading docks
  • Process Equipment Maintenance
  • Truck Service Centers
