Capacity

Up to 150 lbs

Span

Circular to 12'

Height

N/A

Coverage Area
Type

Circular

Coverage Area

200°/300°

Motorization

No

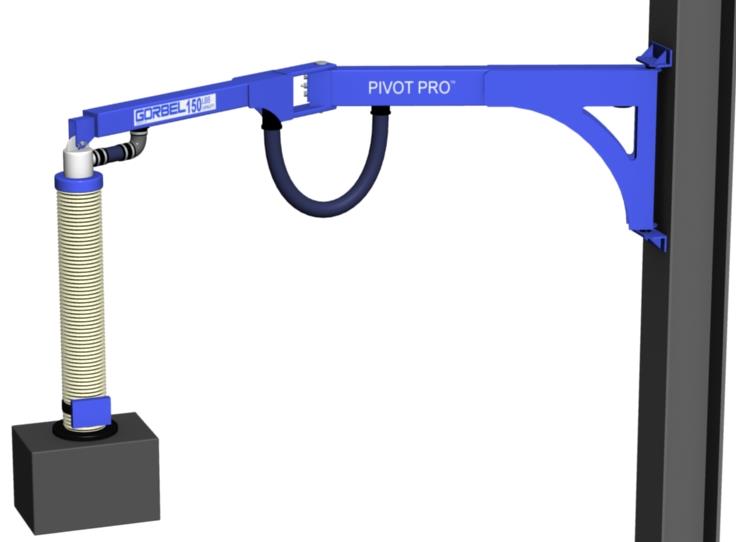

Wall Mounted PIVOT PRO

    The Wall Mounted PIVOT PRO can help you position loads in places you couldn't reach with traditional jibs. It provides easy rotation and consistent responsiveness when positioning loads throughout the crane’s coverage area. It is capable of 200° rotation on the primary arm and 300° rotation with the secondary arm. Here are some key features of our Wall Mounted PIVOT PRO:

  • Sealed tube eliminated the need for festooning in vacuum applications
  • Articulated boom design – reduced “whip” of the boom in high cycle applications
  • Rotation limits for primary arm to tailor the coverage area to your needs
  • Compatible with all major OEM tube lifters
  • Designed to fit all major vacuum equipment manufacturers
  • Sealed tubes eliminate the need for festooning in vacuum and air applications
  • Allows for precise positioning by eliminating the “whip” of the boom that is experienced in repetitive and high cycle applications
  • Greatly reduces the wear and tear on the vacuum lift tubes

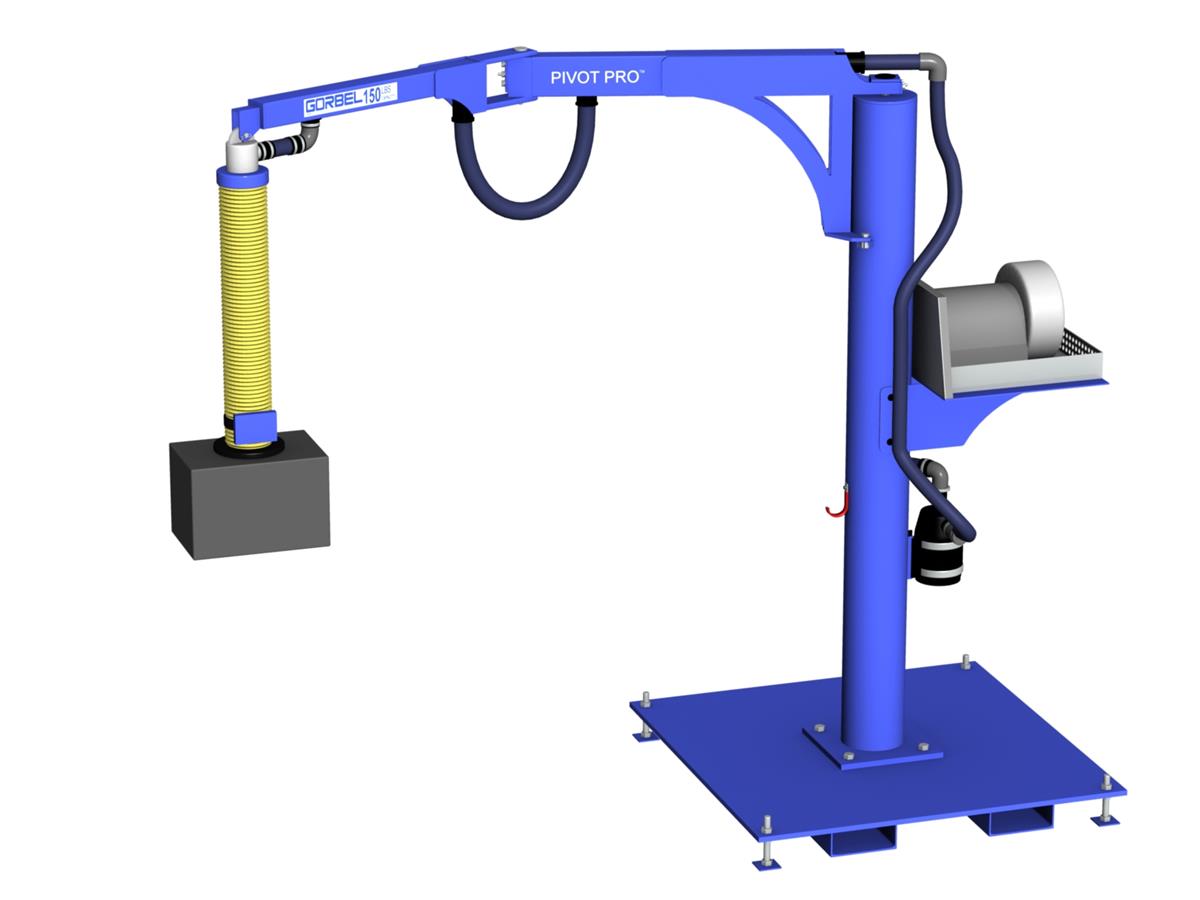

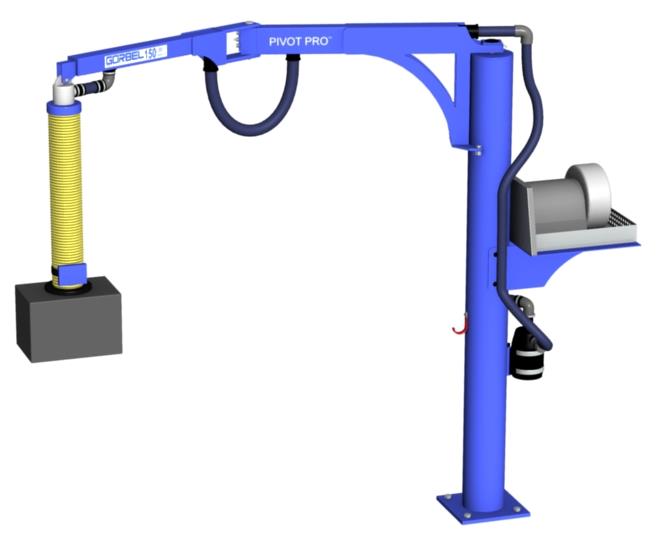

  • Also mountable on columns

Options:

  • Additional hose, clamps, and mounting hardware available

Accessories (Add-Ons):

  • Filter mounting bracket
  • Vacuum blower platform
  • Smart hook mounted to mast to store tube filter
  • Circular areas not sufficiently covered by a main crane
  • Supporting tool balancers, air balancers, hoists, vacuum lifters and welding wire feeders
