Capacity

165 lbs

Span

Up to 14 ft

Speed

Up to 180 ft/min

Coverage Area
Type

Circular

Coverage Area

360°

Input/Output

8 Sinking / 8 FET

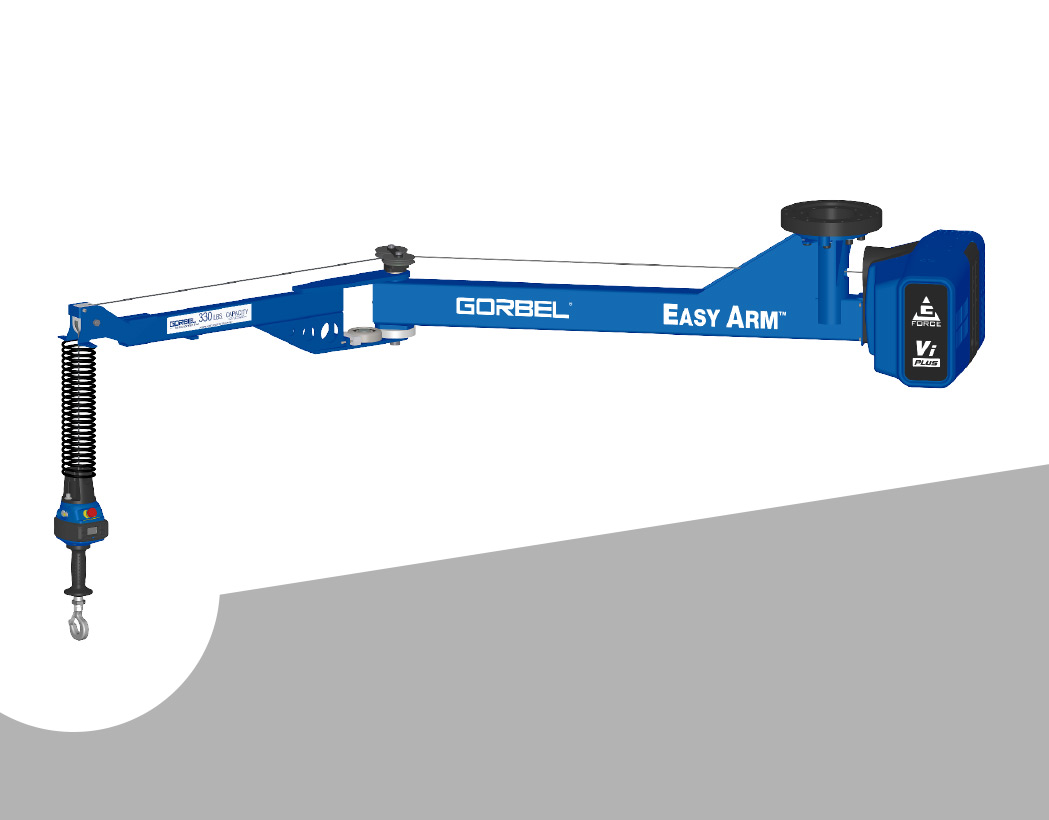

Underhung Easy Arm

    The Easy Arm® uses Gorbel®’s award winning G-Force® technology and integrates it into an articulating jib design for a turn-key plug and play lift assist device.

    Easy Arm® can be observed in applications such high cycle pick and place applications, loading and unloading machine parts and working around machines or maneuvering parts around obstructions. Here are some key features of our Underhung Easy Arm:

  • Fully Integrated with Q2 and IQ2 G-Force® Intelligent Lifting Devices
  • Includes all the features and benefits of Gorbel’s G-Force® Technology
  • Saves valuable floor space
  • For hook heights over 11’
  • Covers multiple work cells
  • 165 lb. standard capacity. Contact Gorbel ® to inquire about 330 lb. unit
  • Read through articles on the benefits of utilizing Intelligent Assist Devices:

    View more articles on our Material Handling and Safety HUB

Service Menu

G-Force G-Link Service Menu

Settings Menu

G-Force G-Link Settings Menu
Both the Q2 and iQ2 units feature an updated computer based visualization interface that makes configuring your unit a breeze. This wireless Smart Connect user interface can be used on a tablet or PC to monitor or configure system settings and parameters.
Standard Features Q

2

iQ

2

Anti-recoil technology
Infinite speed control
Power loss protection
Blazing speeds up to 200 fpm
Operator present detection
Capacity overload
Float mode
Pinpoint precision
User settable load limiting
G360 collector and air swivel
OLED display
Multiple language capabilities and on-screen handle display
Seven different handle configurations
Menu setting lock out feature
User settable maintenance alerts
Fault code history log
G-Link Smart Connect IoT connectivity available
Virtual limits 3 sets Multiple sets
24 volt DC power available at handle
User configurable Inputs and Outputs on the handle
(2 Inputs 2 Outputs)

(8 points that can be configured as inputs or outputs)
User configurable Inputs and Outputs at the actuator
(8 dedicated inputs and 4 dedicated outputs)
Tablet or PC based wireless G-Link Smart Connect interface
Anti-drop functionality for tooling control
Auto-home

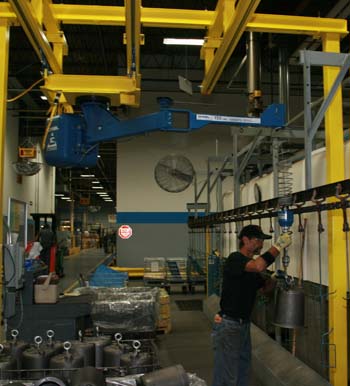

"We are a very ergonomic-minded company,” said the Manufacturing Manager. “While some products may be good for the workers, they can be a tough sell when we try to convince them to use the products. The Easy Arm™ products were very easy to convince our workers to use. The introduction of the Easy Arms into the work flow tied in perfectly to the Six Sigma strategy and the efficiency of the company’s work flow."
  • Frees up valuable floor space
  • Mount to an existing bridge crane
  • Two pivot points make it easy to reach around obstacle or into machines
  • Unmatched precision
  • G360™ air & electric collector swivel assembly prevents tangled cables

Options:

  • iQ2 unit with added intelligence features
  • Slide, pendant, or force sensing handle options

Accessories (Add-Ons):

  • Reaching into a work cell or around obstructions
  • Reaching under overhead obstructions such as exhaust hoods
  • Reaching into machines
  • High cycle pick and place
  • Loading/unloading machined parts
